Tianjin Huatong Hydraulic Test Pump Co., Ltd
|

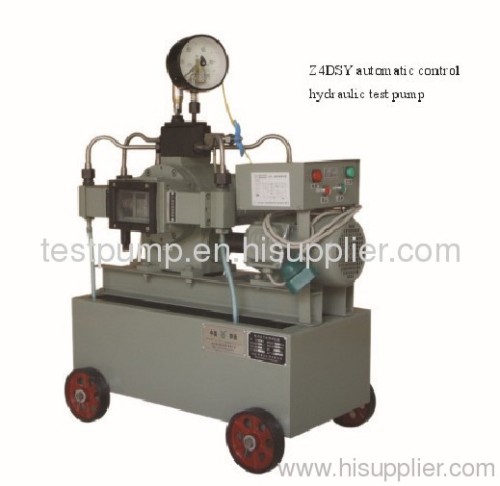

Electric Hydraulic Test Pump
| Payment Terms: | T/T,L/C |
| Place of Origin: | Tianjin, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Automatic and Remote control. The remote could Start/Stop the test pump within the distance of 100m.
The Automatic type/Remote control test pump is the patented product of our company and we got the patent in the year of 1995. Considering the safety of the operator, we had installed safety valve, pressure controller, and remote which largely protect the operator. And the test pump with pressure>40Mpa, we all applied 2 modes for your operation: Automatic and Remote control. The remote could Start/Stop the test pump within the distance of 100m.
The test pump with pressure<40mpa, we could also supply the remote control system for you if you need.
Our test pump and hydraulic testing system had made great contribution to the military water pressure testing, tube burst testing, deep ocean testing, vessels test, valves and space technology, oil and gas industry, ship and many other fields
Model | Rated pressure Mpa | Flow capacity L/h | Plunger Dia mm | Motor | Overall size mm | Weight kg | ||
High pressure | Low pressure | Model | Power | |||||
Z4DSY-165/6.3 | 6.3 | 165 | 500 | 32 | Y90L-4 | 1.1 | 815X485X1100 | 200 |
Z4DSY-100/10 | 10 | 100 | 450 | 25 | Y90L-4 | 1.1 | 815X485X1100 | 200 |
Z4DSY-63/16 | 16 | 63 | 400 | 20 | Y90L-4 | 1.1 | 815X485X1100 | 200 |
Z4DSY-40/25 | 25 | 40 | 380 | 16 | Y90L-4 | 1.1 | 815X485X1100 | 200 |
Z4DSY-30/40 | 40 | 30 | 360 | 14 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
Z4DSY-22/65 | 65 | 22 | 350 | 12 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
Z4DSY-15/80 | 80 | 15 | 340 | 10 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
Z4DSY-15/100 | 100 | 15 | 340 | 10 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
·Plunger dia.of low pressure cyliner:45mm
·Low pressure cylinder working pressure<1.6MPa
·Plunger Stroke: 40mm
·The remote could control the test pump within the distance of 100m.
·You could set any test pressure within the rated pressure.
·We will supply the spare parts for free for the whole time since you ordered the test pump.
·Low pressure cylinder working pressure<1.6MPa
·Plunger Stroke: 40mm
·The remote could control the test pump within the distance of 100m.
·You could set any test pressure within the rated pressure.
·We will supply the spare parts for free for the whole time since you ordered the test pump.
Model | Rated pressure Mpa | Flow capacity L/h | Plunger dia mm | Motor | Overall size mm | Weight kg | ||
High pressure | Low pressure | Model | Power | |||||
Z4DSY800/3 | 3 | 800 | 0 | 45 | Y90L-4 | 2.2 | 815X485X1100 | 200 |
Z4DSY280/6.3 | 6.3 | 280 | 0 | 32 | Y90L-4 | 1.1 | 815X485X1100 | 200 |
Z4DSY200/10 | 10 | 200 | 0 | 25 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
Z4DSY120/16 | 16 | 120 | 0 | 20 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
Z4DSY80/25 | 25 | 80 | 0 | 16 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
Z4DSY60/40 | 40 | 60 | 0 | 14 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
Z4DSY50/63 | 63 | 50 | 0 | 12 | Y90L-4 | 2.2 | 815X485X1100 | 200 |
Z4DSY45/80 | 80 | 45 | 0 | 10 | Y90L-4 | 1.5 | 815X485X1100 | 200 |
Z4DSY30/100 | 100 | 30 | 0 | 10 | Y90L-4 | 2.2 | 815X485X1100 | 200 |
Z4DSY30/130 | 130 | 15 | 0 | 10 | Y90L-4 | 2.2 | 815X485X1100 | 200 |
